TTD · Tolon

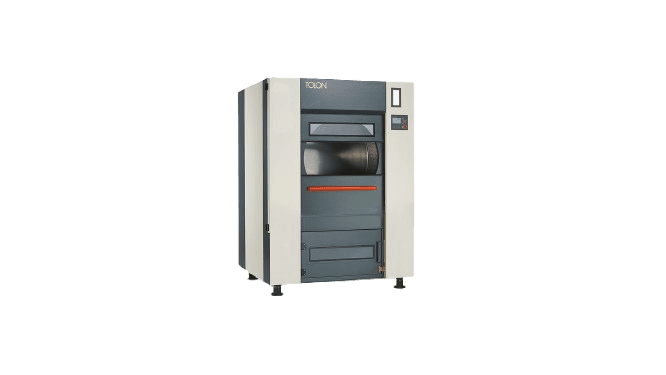

Industrial dryer 40 kg TTD 40 Tolon
TTD 40 Tolon, 40 kg industrial dryer for high-performance laundry operations.
TTD Series
TTD 40: 40 kg Tolon industrial dryer
Tolon 40 kg industrial tumble dryer with sliding door, 808-litre drum and output up to 68 kg/h.
Need help choosing the right model? We can help according to workload, available space and installation requirements.
Features
Features and equipment of the TTD 40 industrial dryer
Stainless steel drum designed for long service life
Fully insulated drum for improved energy efficiency
Reversing drum for even drying
Wide sliding door for easier loading and unloading
Removable and easily accessible stainless steel lint filter
Programmable control with display and clear status indication
Standard inverter drive
Description
TTD 40 industrial dryer for commercial and industrial laundries
The Tolon TTD 40 increases the production capacity of the TTD range while retaining the sliding-door configuration designed to optimise available space in professional laundries.
It features an 808-litre drum for a 40 kg dry load and delivers an output of 68 kg/h. The reversing drum and programmable control allow the drying process to be adapted to different textile loads.
It can be configured with electric, steam or gas heating and includes a stainless steel drum, accessible lint filter and inverter drive as standard.
Technical data
Capacity and technical specifications of the TTD 40
Review the available technical data, performance, capacities, consumption and dimensions for the Tolon TTD 40.
- Dry load
- 40 kg
- Performance
- 68 kg/h
- Drum diameter
- 1230 mm
- Drum depth
- 680 mm
- Drum volume
- 808 l
- Door opening
- 715 mm
- Electrical heating power
- 36 kW
- Steam heat exchanger · 6 bar
- 45 kW
- Steam heat exchanger · 12 bar
- 50 kW
- Gas burner
- 55.24 kW
- Drum motor
- 1.1 kW
- Fan motor · electric
- 2.2 kW
- Fan motor · steam/gas
- 3 kW
- Cycle duration · gas
- 30–35 min
- Cycle duration · steam
- 35–40 min
- Cycle duration · electric
- 40–45 min
- Exhaust connection
- 200 mm
- Airflow · electric
- 2500 m³/h
- Airflow · steam/gas
- 2750 m³/h
- Dimensions · electric
- 1416 × 1528 × 2191 mm
- Dimensions · steam
- 1416 × 1528 × 2376 mm
- Dimensions · gas
- 1416 × 1528 × 2229 mm
- Net weight · electric
- 615 kg
- Net weight · steam
- 690 kg
- Net weight · gas
- 665 kg
- Sound level
- < 63.7 dB(A)
Documentation
Tolon TTD 40 industrial dryer technical datasheet
View Tolon's technical documentation with the available specifications for TTD 40.
Request a quote for the Tolon TTD 40
LGN can help you assess whether TTD 40 fits your required capacity, output, available space and installation requirements.
