TBW · Tolon

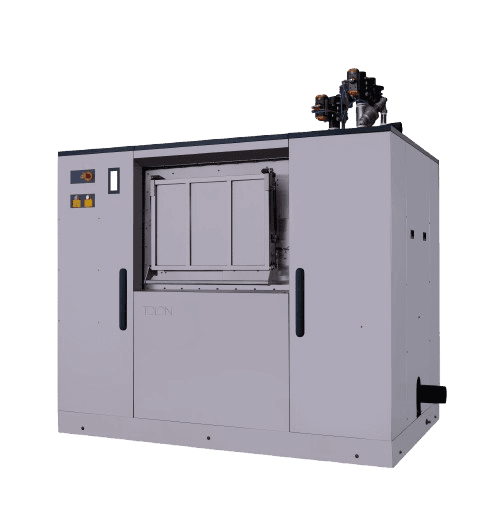

Industrial washer 120 kg TBW 120 Tolon
TBW 120 Tolon, 120 kg industrial barrier washer designed to separate loading and unloading areas for hygienic laundry processing.
TBW Series
TBW 120: 120 kg industrial barrier washer
Tolon TBW 120 barrier washer with a 120 kg load capacity, 1,235-litre drum and maximum G-force of 305.
Need help choosing the right model? We can help according to workload, available space and installation requirements.
Features
Barrier system and equipment of the Tolon TBW 120
Freestanding high-spin barrier washer
Ergonomic double-chamber drum
Two opposed doors for hygienically separated loading and unloading
Drum, outer drum and cabinet made from AISI 304 stainless steel
Six-compartment frontal dispenser with automatic dosing preparation
USB connection for importing, adding and updating programmes
Description
TBW 120 industrial barrier washer for hygienic laundry processing
The Tolon TBW 120 is a large-capacity barrier washer developed for facilities processing high laundry volumes with hygienic separation between areas.
Its capacity reaches 120 kg, with a 1,235-litre double-chamber drum, 165–120 kg/h performance and 705 rpm extraction speed with a G-force of 305.
The opposed-door configuration supports separate loading and unloading flows, while programmable control, automatic dosing preparation and AISI 304 construction support industrial laundry installations.
Technical data
Capacity and technical specifications of the TBW 120
Review the available technical data, performance, capacities, consumption and dimensions for the Tolon TBW 120.
- Dry load
- 120 kg
- Performance
- 165–120 kg/h
- Cycle duration
- 30–45 min
- Drum diameter
- 1100 mm
- Drum depth
- 1300 mm
- Drum volume
- 1235 l
- Wash speed
- 35 rpm
- Extraction speed
- 705 rpm
- Maximum G-force
- 305
- Door opening
- 770 × 540 mm
- Electric heating
- 60 kW
- Motor
- 15 kW
- Electric consumption
- 52.5 kWh
- Steam consumption
- 50 kg/cycle
- Cold water consumption
- 310 l/cycle
- Hot water consumption
- 395 l/cycle
- Drain flow
- 600 l/min
- Programs
- 16 standard · maximum 99
- Display
- 7" colour LCD
- Dimensions
- 2424 × 1609 × 2060 mm
- Net weight
- 2450 kg
- Sound level
- 63–79 dB(A)
Documentation
Tolon TBW 120 barrier washer technical datasheet
View Tolon's technical documentation with the available specifications for TBW 120.
Request information and a quote for the Tolon TBW 120
LGN can help you assess whether TBW 120 fits your required capacity, output, available space and installation requirements.
