TBW · Tolon

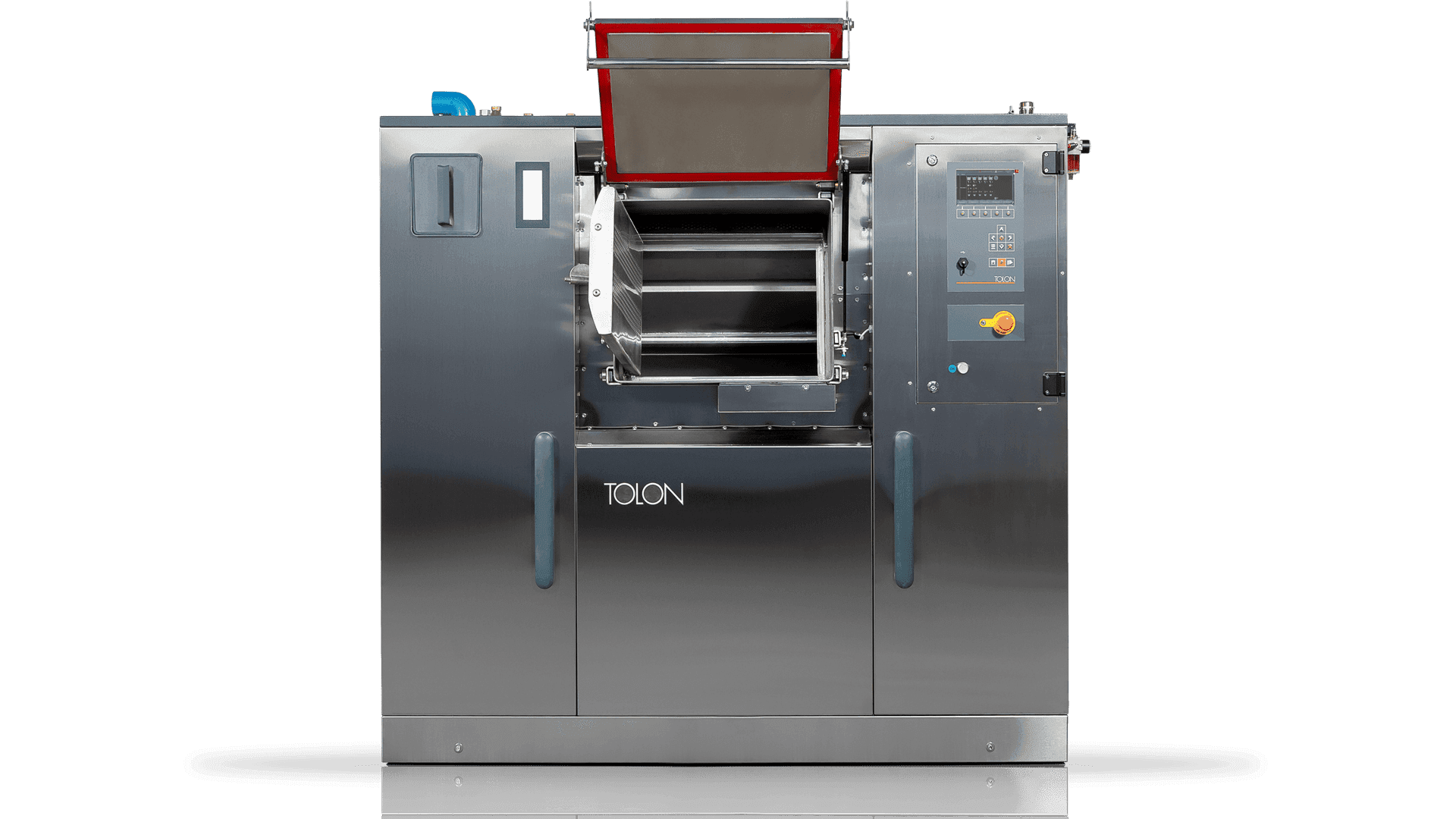

Industrial washer 63 kg TBW 63 Tolon
TBW 63 Tolon, 63 kg industrial barrier washer designed to separate loading and unloading areas for hygienic laundry processing.
TBW Series
TBW 63: 63 kg industrial barrier washer
Tolon TBW 63 barrier washer with a 63 kg load capacity, 636-litre drum and maximum G-force of 305.
Need help choosing the right model? We can help according to workload, available space and installation requirements.
Features
Barrier system and equipment of the Tolon TBW 63
Freestanding high-spin barrier washer
Ergonomic double-chamber drum
Two opposed doors for hygienically separated loading and unloading
Drum, outer drum and cabinet made from AISI 304 stainless steel
Six-compartment frontal dispenser with automatic dosing preparation
USB connection for importing, adding and updating programmes
Description
TBW 63 industrial barrier washer for hygienic laundry processing
The Tolon TBW 63 is an industrial barrier washer designed for facilities where soiled-linen loading and clean-linen unloading need to remain physically separated.
It provides a 63 kg load capacity, 636-litre double-chamber drum, 94.5–68 kg/h performance and 780 rpm extraction with a G-force of 305.
Its opposed doors, AISI 304 stainless-steel construction and automatic dosing preparation support professional processes with demanding hygiene requirements.
Technical data
Capacity and technical specifications of the TBW 63
Review the available technical data, performance, capacities, consumption and dimensions for the Tolon TBW 63.
- Dry load
- 63 kg
- Performance
- 94.5–68 kg/h
- Cycle duration
- 30–45 min
- Drum diameter
- 900 mm
- Drum depth
- 1000 mm
- Drum volume
- 636 l
- Wash speed
- 38 rpm
- Extraction speed
- 780 rpm
- Maximum G-force
- 305
- Door opening
- 580 × 450 mm
- Electric heating
- 30 kW
- Motor
- 7.5 kW
- Electric consumption
- 26.25 kWh
- Steam consumption
- 28 kg/cycle
- Cold water consumption
- 175 l/cycle
- Hot water consumption
- 232 l/cycle
- Drain flow
- 230 l/min
- Programs
- 16 standard · maximum 99
- Display
- 7" colour LCD
- Dimensions
- 1943 × 1400 × 1831 mm
- Net weight
- 1500 kg
- Sound level
- 63–79 dB(A)
Documentation
Tolon TBW 63 barrier washer technical datasheet
View Tolon's technical documentation with the available specifications for TBW 63.
Request information and a quote for the Tolon TBW 63
LGN can help you assess whether TBW 63 fits your required capacity, output, available space and installation requirements.
