TWE · Tolon

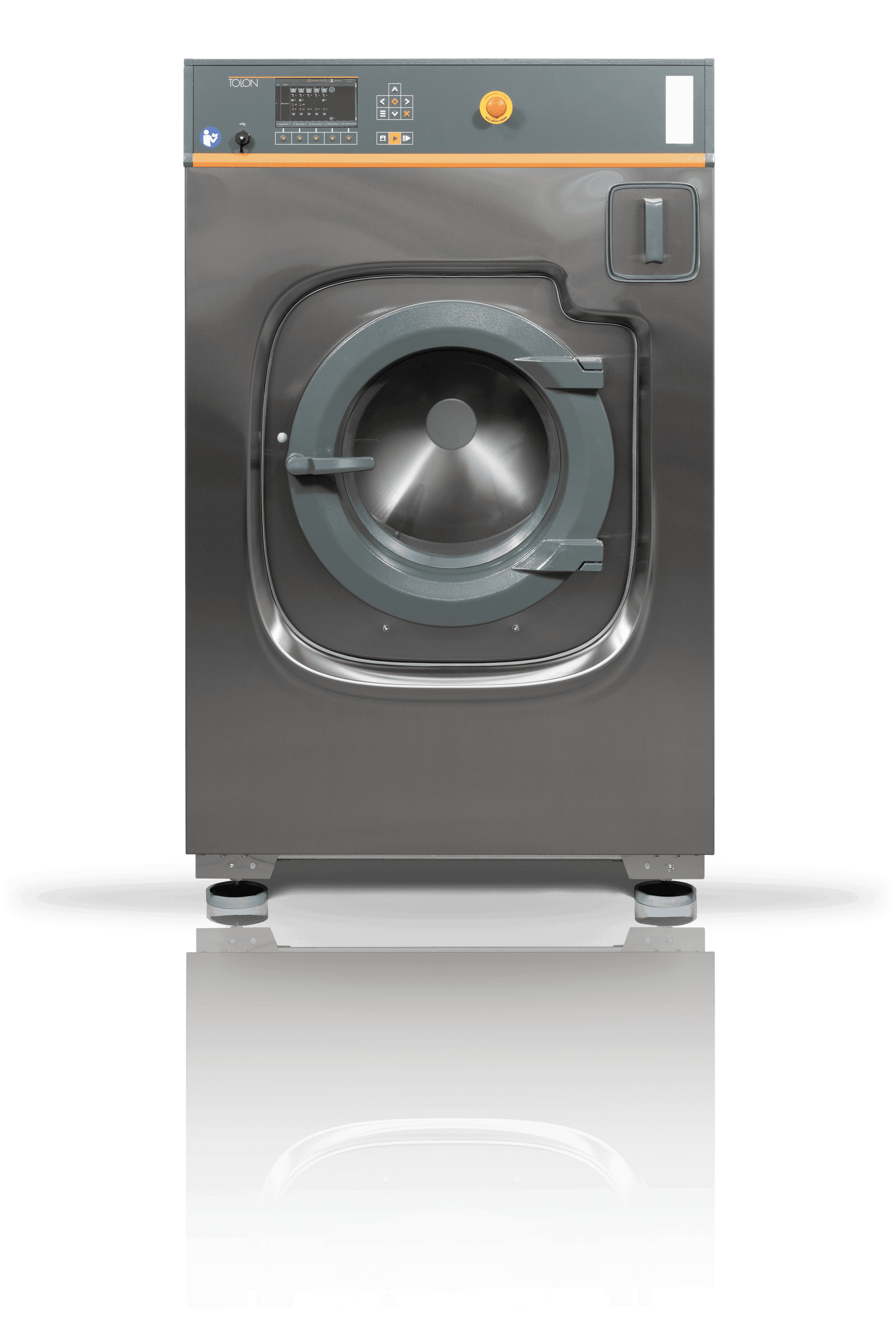

Industrial washer 10 kg TWE 10 Tolon
TWE 10 Tolon, 10 kg industrial washer with high-spin extraction for high-performance laundry operations.
TWE Series
TWE 10: 10 kg Tolon industrial washer
Tolon TWE 10 softmount industrial washer with a 10 kg load capacity, 103-litre drum, high-speed extraction and a maximum G-force of 360.
Need help choosing the right model? We can help according to workload, available space and installation requirements.
Features
Features and equipment of the TWE 10 industrial washer
Compact and modern space-saving design
Drum, tub and front panel made from AISI 304 stainless steel
Programmable control with 7-inch colour display
USB connection for quick data transfer and programme editing
Loading and unloading door with opening angle up to 180°
Accelerometer for load balancing
Description
TWE 10 industrial washer for commercial and industrial laundries
The Tolon TWE 10 is a high-spin softmount industrial washer with a 10 kg dry-load capacity. Its compact design is intended for professional installations where space efficiency and high extraction performance are important.
The model features a 103-litre drum, an extraction speed of up to 1,012 rpm and a maximum G-force of 360. Its stated cycle duration ranges from 30 to 45 minutes, with a calculated performance of 18 to 12.5 kg/h depending on cycle time and loading and unloading times.
The TWE 10 features programmable control with a 7-inch colour display, USB connectivity, a visual status indicator and an illustrated troubleshooting guide. Electrical, steam and dual heating configurations are available.
Technical data
Capacity and technical specifications of the TWE 10
Review the available technical data, performance, capacities, consumption and dimensions for the Tolon TWE 10.
- Dry load
- 10 kg
- Performance
- 18–12.5 kg/h
- Cycle duration
- 30–45 min
- Drum diameter
- 630 mm
- Drum depth
- 330 mm
- Drum volume
- 103 l
- Wash speed
- 43 rpm
- Extraction speed
- 1,012 rpm
- Maximum G-force
- 360
- Door opening
- 455 mm
- Electric heating
- 9 kW
- Steam pressure
- 4–6 bar
- Motor
- 1.5 kW
- Electric consumption
- 2.34 kWh
- Steam consumption
- 5 kg/cycle
- Water pressure
- 200–400 kPa
- Water inlet flow
- 60 l/min
- Drain flow
- 230 l/min
- Programs
- 18 standard · maximum 99
- Display
- 7" colour LCD
- Standard dimensions (W × D × H)
- 880 × 976 × 1500 mm
- Net weight
- 438 kg
- Sound level
- 55–65 dB(A)
Documentation
Tolon TWE 10 industrial washer technical datasheet
View Tolon's technical documentation with the available specifications for TWE 10.
Request a quote for the Tolon TWE 10
LGN can help you assess whether TWE 10 fits your required capacity, output, available space and installation requirements.
