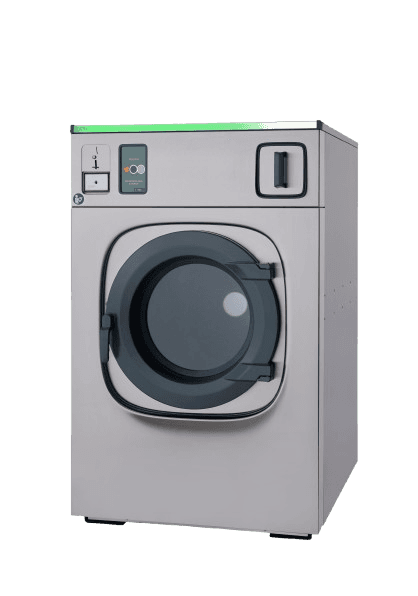

Industrial washer 10 kg TWR 10 Tolon
TWR 10 Tolon, 10 kg hard mount industrial washer for professional and industrial laundry installations.
TWR Series
TWR 10: 10 kg hard mount industrial washer
Tolon TWR 10 hardmount industrial washer with a 10 kg load capacity, 103-litre drum and maximum G-force of 200.
Need help choosing the right model? We can help according to workload, available space and installation requirements.
Features
Features and equipment of the Tolon TWR 10 washer
Hardmount washer designed for floor anchoring
Drum, tub and front panel made from AISI 304 stainless steel
Five-compartment frontal dispenser
Programmable control with vertical touchscreen
USB-C connection for programme transfer and editing
Loading and unloading door opening up to 180°
Description
TWR 10 hard mount washer for industrial laundry operations
The Tolon TWR 10 is a compact 10 kg hardmount industrial washer designed for professional laundry installations.
Its 103-litre drum provides a performance range of 18–12.5 kg/h and reaches 750 rpm with a G-force of 200. As a hardmount machine, it must be correctly anchored to the floor.
The TWR range features Vector touchscreen control, USB-C connectivity, automatic dosing preparation and electrical, steam or dual heating configurations.
Technical data
Capacity and technical specifications of the TWR 10
Review the available technical data, performance, capacities, consumption and dimensions for the Tolon TWR 10.
- Dry load
- 10 kg
- Performance
- 18–12.5 kg/h
- Cycle duration
- 30–45 min
- Drum diameter
- 630 mm
- Drum depth
- 330 mm
- Drum volume
- 103 l
- Wash speed
- 10–50 rpm
- Extraction speed
- 750 rpm
- Maximum G-force
- 200
- Door opening
- 455 mm
- Electric heating
- 9 kW
- Motor
- 1.1 kW
- Electric consumption
- 2.13 kWh
- Steam consumption
- 5 kg/cycle
- Cold water consumption
- 39 l/cycle
- Hot water consumption
- 42 l/cycle
- Control
- New Vector Control
- Dimensions
- 785 × 890 × 1285 mm
- Net weight
- 290 kg
- Sound level
- 55–65 dB(A)
Documentation
Tolon TWR 10 industrial washer technical datasheet
View Tolon's technical documentation with the available specifications for TWR 10.
Request a quote for the Tolon TWR 10
LGN can help you assess whether TWR 10 fits your required capacity, output, available space and installation requirements.
